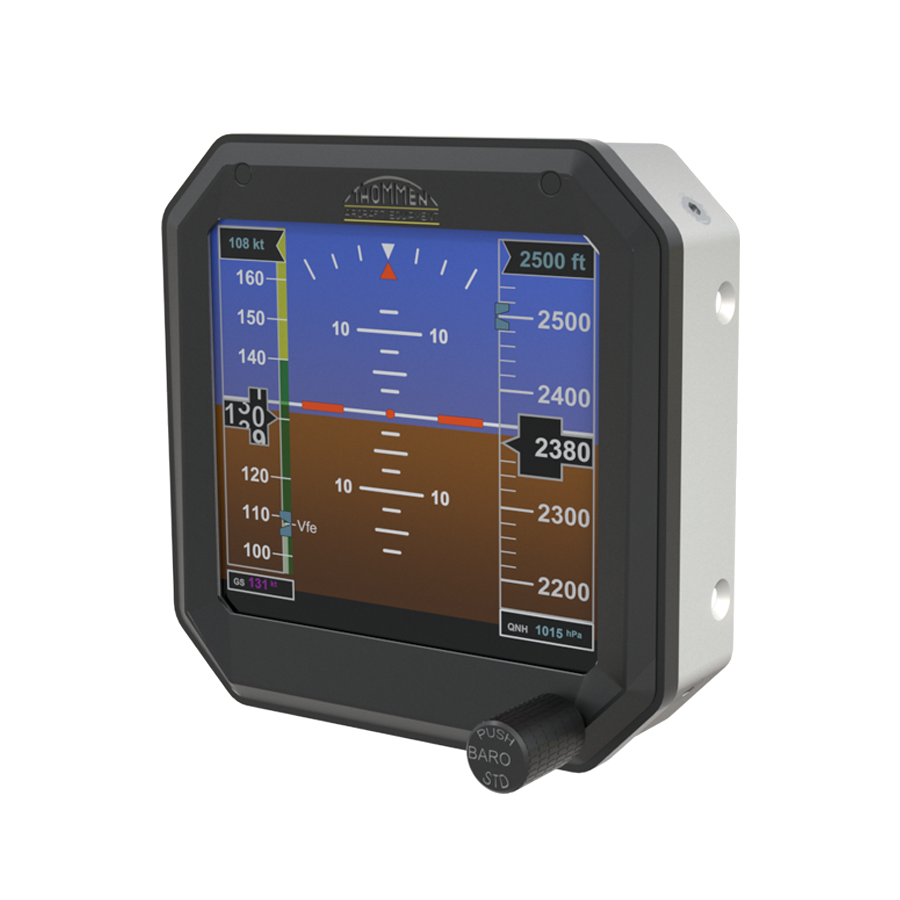

3ATI High-Resolution AMLCD Display Module
Available from THOMMEN AIRCRAFT EQUIPMENT Ltd.
With an undisputed reputation of delivering highly reliable and customizable avionics solutions, THOMMEN now presents a compact and state-of-the-art high resolution AMLCD display module for forward fit or retrofit OEM programs. Packaged to fit into a typical 3ATI case, this display frontend is designed to seamlessly integrate with third-party electronics and computing backends to build robust and durable digital flight instruments.
The LED back light display module provides outstanding readability from virtually any viewing angle and the integrated ambient light sensors can be used for automatic brightness adjustment. All-mode operation can also be provided as an option thanks to NVIS-compliant LCD and bezel parts.
With no active cooling and a very low power consumption, the unit caters for a reduced footprint with a total depth of only 24 mm.
The product is available with customizable bezel, optionally fitted with rotary knob, shaft encoder, push buttons, dedicated labelling or OEM logo.
