IMU-P - Inertial Measurement Unit

Available from Inertial Labs Inc
Product Menu
View Company Profile View all Products

Product Details

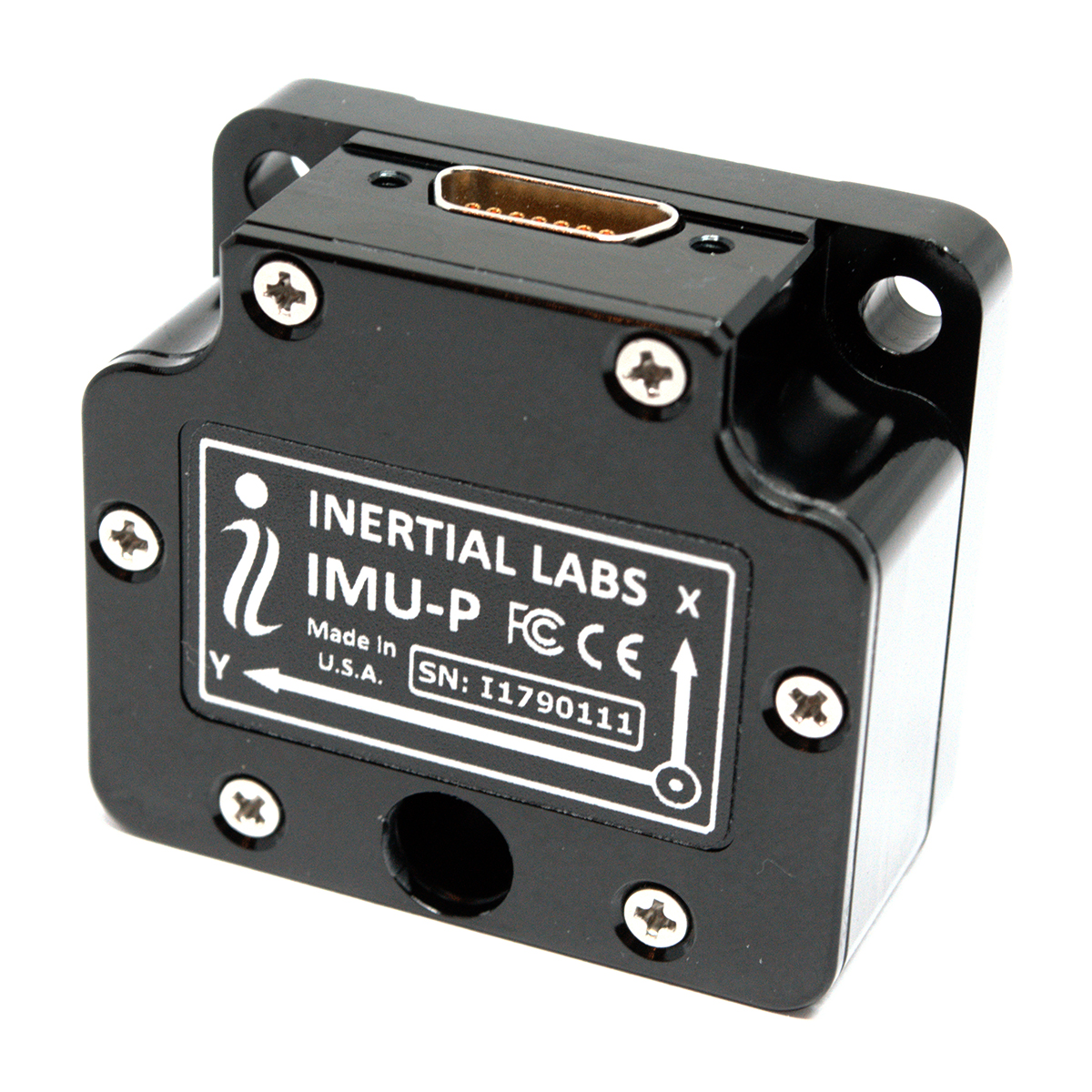

IMU-P is a new generation of compact size (39 x 45 x 22 mm), low weight (70 gram) and high performance Inertial Measurement Unit (IMU). It contains 3 highly accurate Advanced MEMS gyroscopes and 3 ultra high performance accelerometers. The IMU-P is factory fully calibrated and compensated over its operating temperature range.

IMU-P is a cost effective ITAR-free solution for systems that only had FOG’s as an alternative when reaching for the performance level that IMU-P can offer.

Key Features:
➢ ITAR-free
➢ Same mechanical & electrical interfaces as STIM-300
➢ Affordable price
➢ 1 deg/hr gyroscopes Bias in-run stability
➢ 0.005 mg accelerometers Bias in-run stability
➢ 0.08 deg/√hr Angular Random Walk (ARW)
➢ 0.015 m/sec/√hr Velocity Random Walk (VRW)
➢ Advanced, extendable, embedded Kalman Filter
➢ Full temperature calibration of all sensing elements
➢ up to 2000 Hz data rate
➢ Environmentally sealed (IP67)
