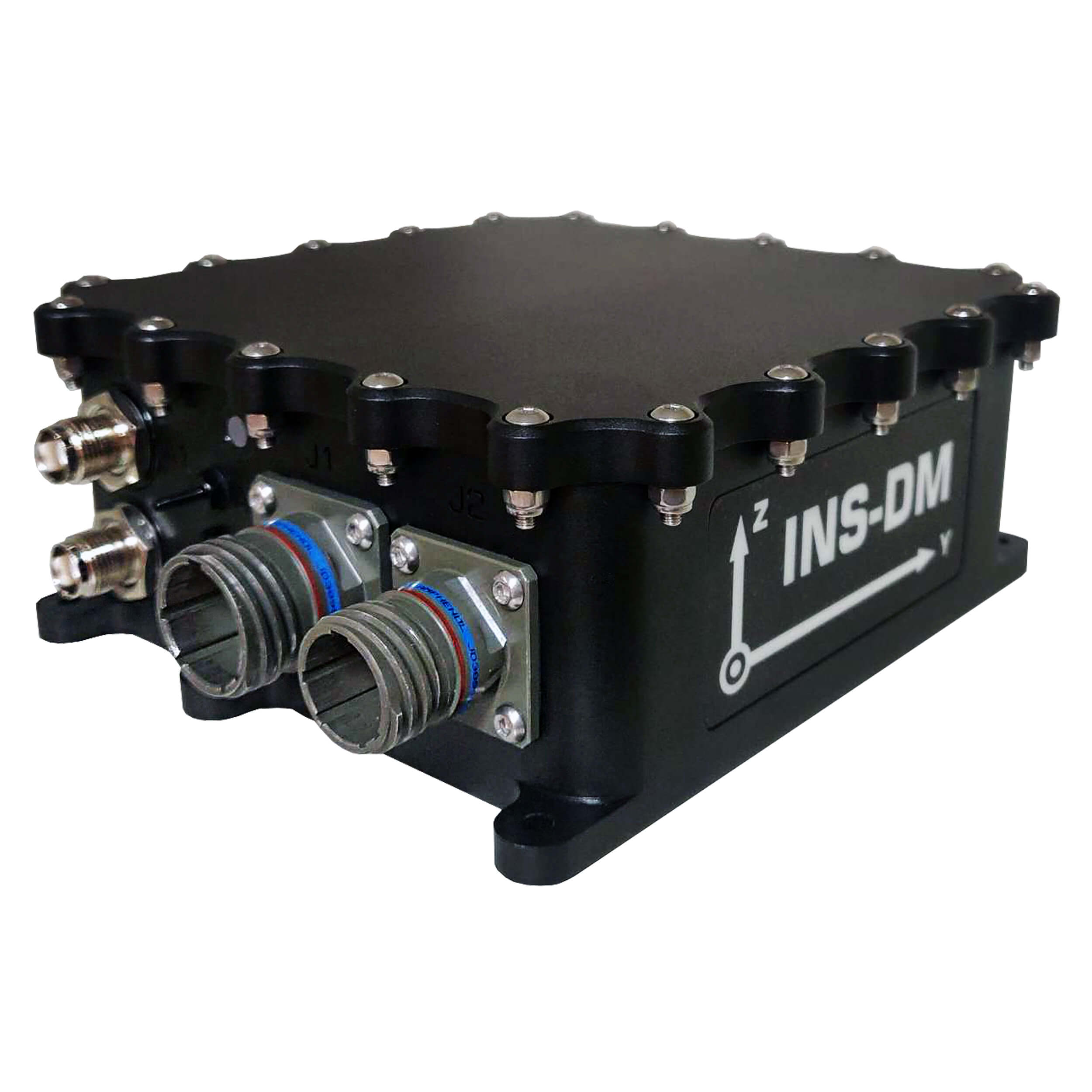

INS-DM

Product Details

INS-DM is an IP68 rated version of an all-new generation of super ruggedized, fully-integrated, combined Inertial Navigation System (INS) + Attitude & Heading Reference System (AHRS) + Air Data Computer (ADC) high-performance strapdown system, that determines position, velocity and absolute orientation (Heading, Pitch and Roll) for any device on which it is mounted.

Key Features:
•Commercially exportable GPS-Aided Inertial Navigation System
•3-in-1 Strapdown System: INS + AHRS + ADC (Air Data Computer)
•Embedded industrial, tactical, or navigation grade Honeywell or Inertial Labs MEMS Inertial Measurement Unit (IMU)
•Novatel OEM7 or u-blox ZED-F9P F9 high precision GNSS receiver
•GPS, GLONASS, GALILEO, BEIDOU, QZSS, RTK supported signals
•Total and static pressure sensors for calculating indicated airspeed
•SP, SBAS, DGPS, RTK and PPP corrections supported for precise real time operation
•GNSS measurements and IMU raw data for post processing
•Advanced, extendable (based on application), embedded Kalman Filter based sensor fusion algorithms
•State-of-the-art algorithms for different dynamic motions of helicopters, UAV’s, marine vessels, and ground vehicles
•Full temperature calibration of all sensing elements
•EMC, EMI and ERD protection (MIL-STD-1275)
•Environmentally sealed (IP68)
•Aiding data: Wind sensor, Air Speed Sensor, Doppler shift from locator (for long-term GPS denied), External position and External Heading
