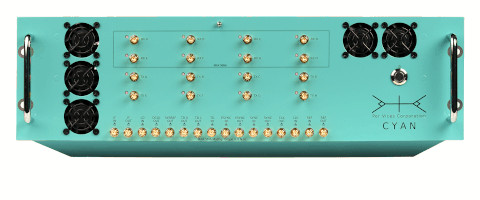

Cyan

Product Details

Cyan is the highest performing COTS SDR available.
Providing simultaneous support for up 16, fully independent, transmit or receive radio channels, each with a standard 1 GHz of RF bandwidth and support for up to 3 GHz, and up to 16 bit converters, this flexible platform can tune from near DC to 18 GHz. The digital throughput includes four 40GBASE-R qSFP ports to quickly receive and transmit radio data with an option to upgrade to four 100GBASE-R.

Different options are available for Cyan to extend the number of DSP channels or enable higher bandwidth. These include:
Cyan EC (extended channel): enables 4 DSP channels per radio chain
Cyan HB (high bandwidth: provides 3 GHz sampling bandwidth per radio chain and 4 x 100 Gbps of digital backhaul.

Key Specifications:
Tuning Range: DC to 18 GHz
Channels: up to 16 Rx/Tx
Bandwidth per chain: 1 or 3 GHz
Backhaul: 160 Gbps or 400 Gbps
Form Factor: 19" 3U
FPGA: Intel Stratix 10 FPGA SoC

Cyan can be ordered as a basic SDR with different channel configurations, with the extended channel, or high bandwidth options. Kits and host & storage solutions are available.
