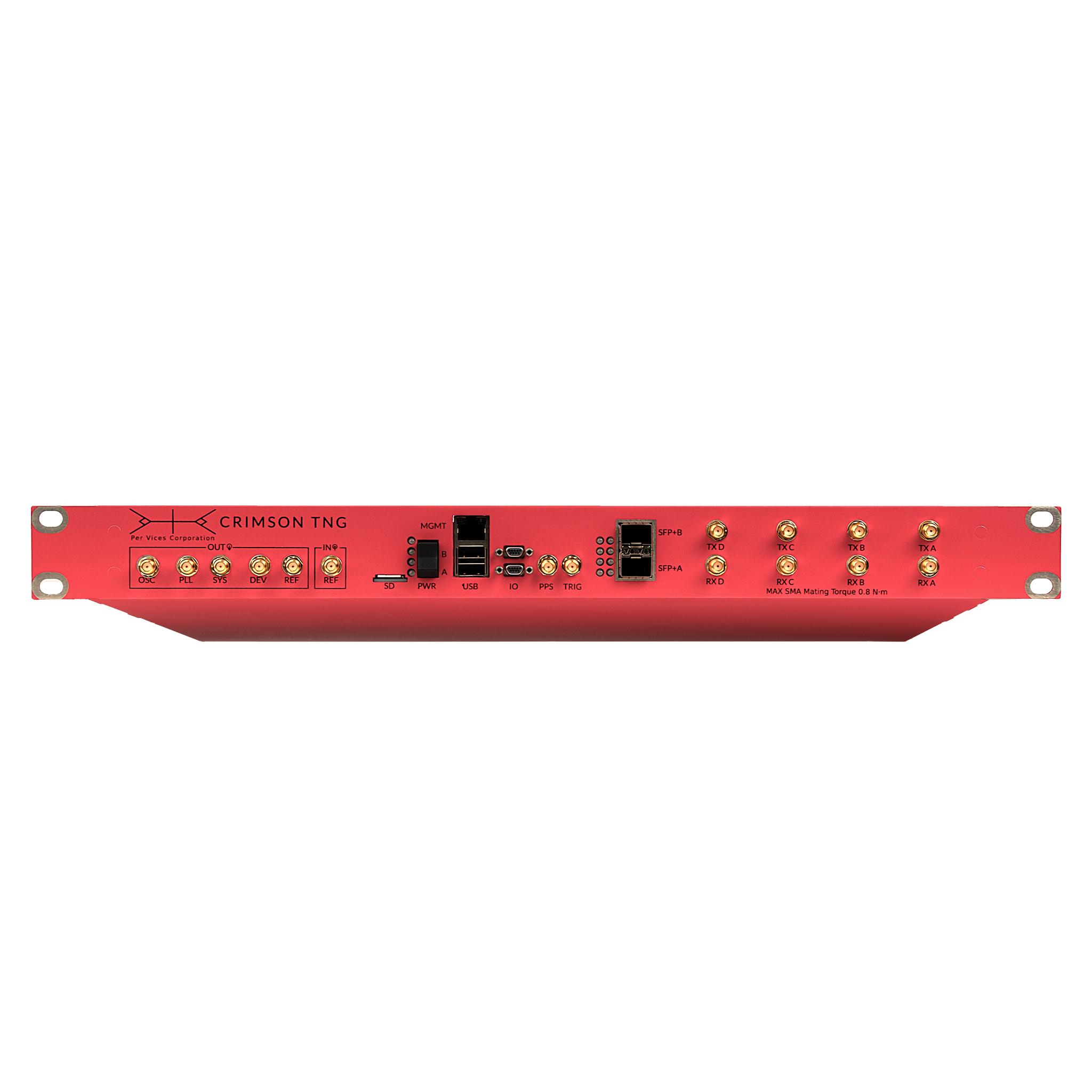

Crimson TNG

Product Details

Crimson TNG is the best-valued SDR in its class.
Crimson TNG offers a 4 receive and 4 transmit radio chain architecture that supports independent control on each of the radio chains or the ability to share a common LO for better phase coherency and stability performance. Each radio chain has an impressive 325 MHz of bandwidth with 16-bit converters and a tuning range from near DC to 6 GHz. The digital interface for controlling the system is a standard 1G Ethernet port and the data transfer is done over dual 10GBASE-R interfaces, providing users with up to 20 Gbps of data transfer.

We offer different kit options which include RF cables, SFP+ cables, attenuators, and a compatible NIC.

Our Crimson TNG can also be paired with one of our storage and processing systems to help customers get up and running in no time.

Key Specifications:
Tuning Range: DC to 6 GHz
Radio Chains: 4 Rx and 4 Tx
Bandwidth per chain: 325 MHz
Backhaul: 20 Gbps
Form Factor: 19" 1U
FPGA: Intel Arria V ST SoC

Crimson TNG is available as a Basic stand-alone SDR or with a kit that includes SMA cables, SFP+ cables, attenuators, and PCIes.

Per Vices offers a custom number of channels and configurations.
