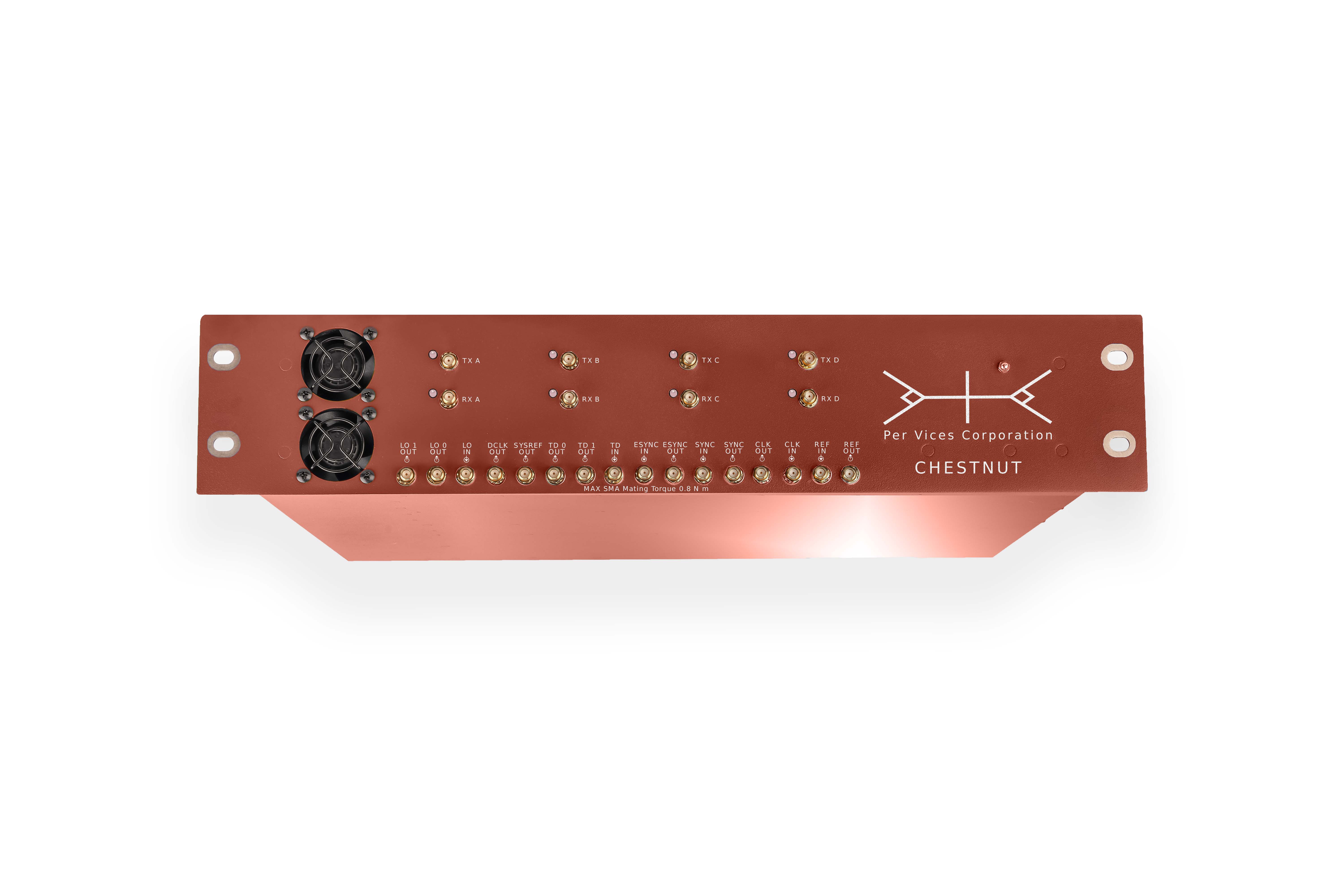

Chestnut

Product Details

Chestnut offers high bandwidth, extended tuning range, and high digital throughput.
Chestnut SDR offers 4 receive and 4 transmit radio chains, each independently controlled, with up to 500 MHz of bandwidth per chain. The architecture allows for either a common LO or separately tuned LOs to be used for improved coherency and stability for the applications requiring this architecture. The tuning range of Chestnut is from near DC to 9 GHz with 16 bit converters and dual 100GBASE-R digital throughput for up to 200 Gbps of data transfer.

We offer different kit options which include RF cables, SFP+ cables, attenuators, and a compatible NIC.

Our Chestnut SDR can be paired with one of our host and storage solutions to help customers get and running in no time.

Key Specifications:
Tuning Range: DC to 9 GHz
Radio Chains: 4 Rx and 4 Tx
Bandwidth per Chain: 500 MHz
Backhaul: 200 Gbps
Form Factor: 19" 2U
FPGA: Intel Aria 10 FPGA SoC

Chestnut is available as a Basic stand-alone SDR or with a kit that includes SMA cables, SFP+ cables, attenuators, and PCIes.

Per Vices offers a custom number of channels and configurations.
